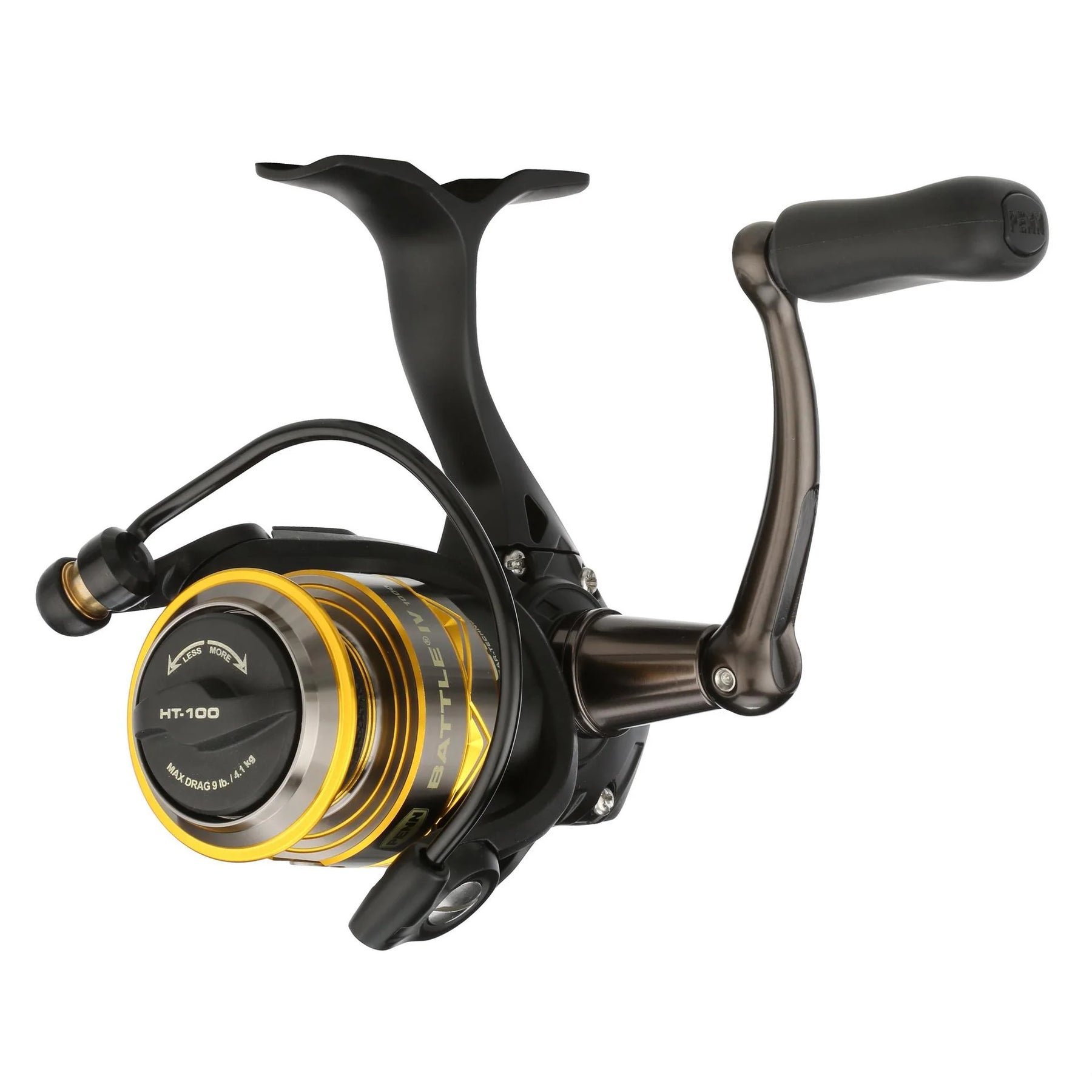

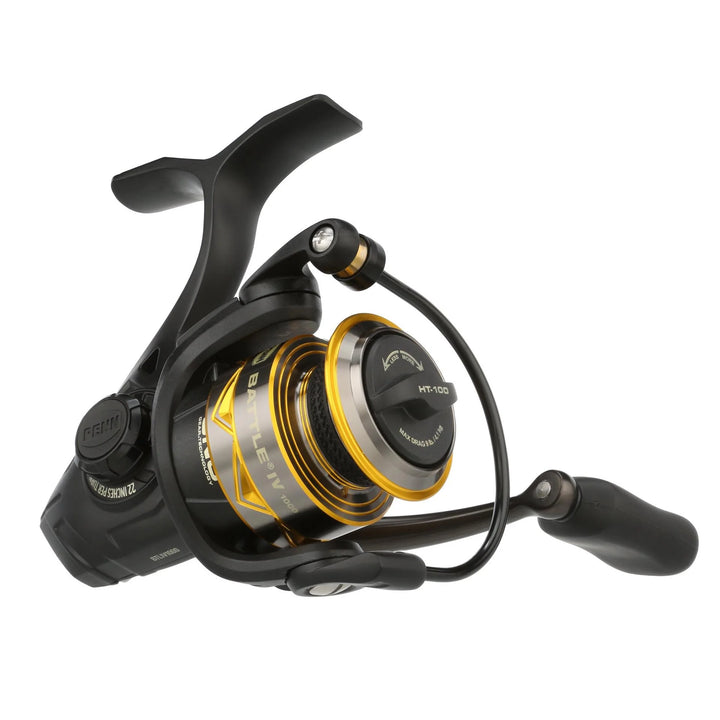

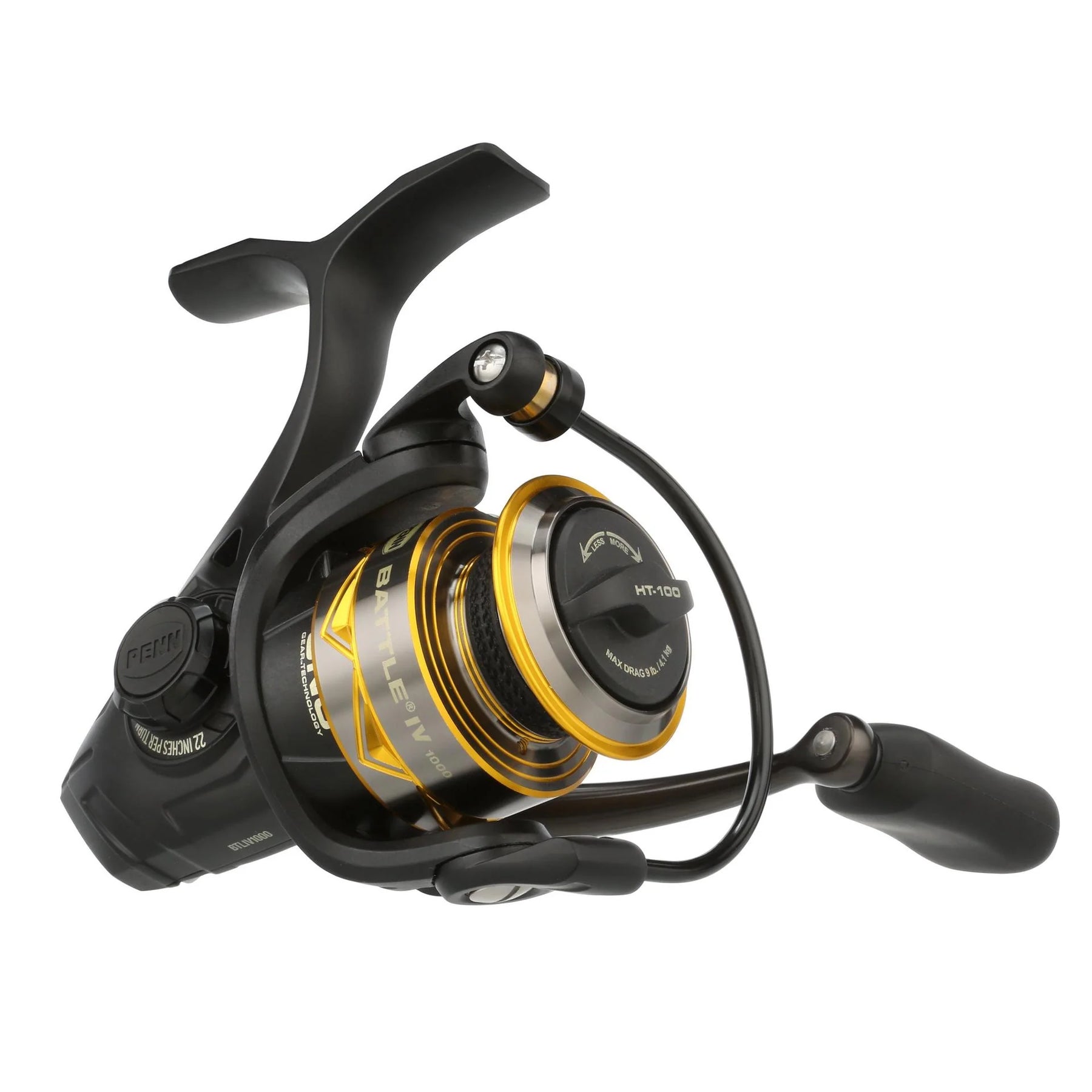

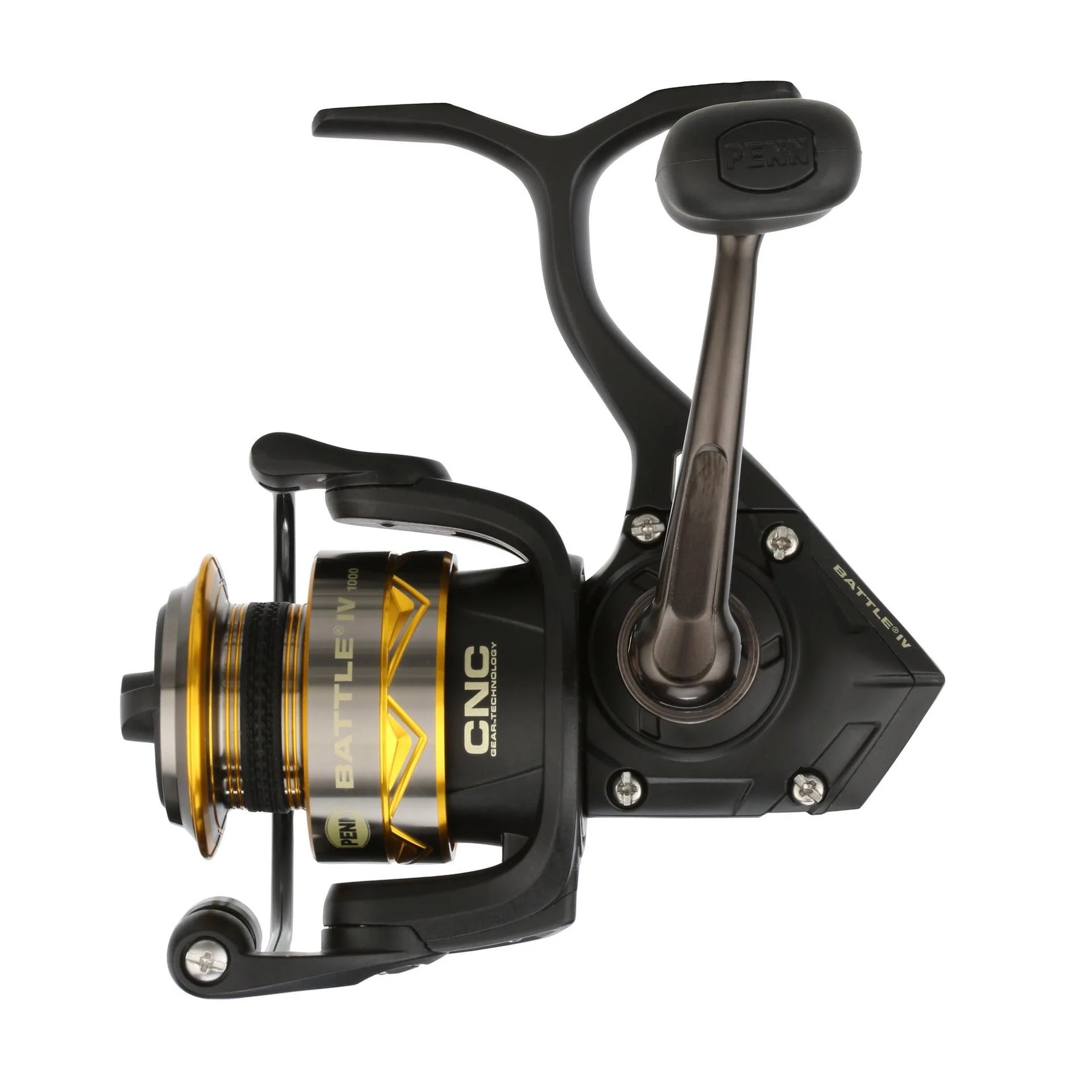

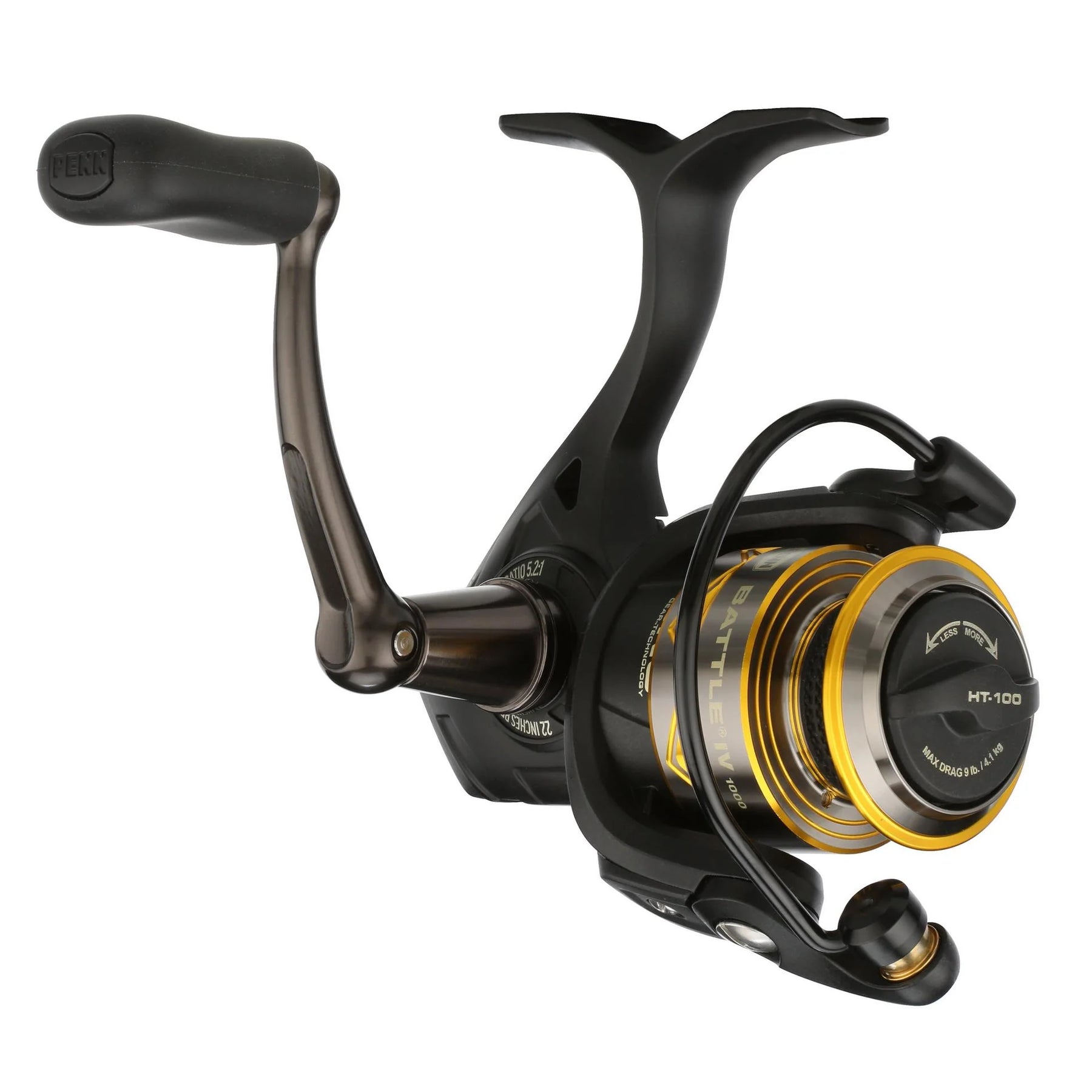

BATTLE® IV SPINNING REEL
SKU: BTLIV4000
The PENN Battle® IV Spinning Reel delivers proven strength, smooth performance, and unmatched value for anglers who demand reliability on the water. Built around PENN’s upgraded CNC Gear™ Technology, it features precision-cut brass gears for long-term durability and power under heavy load. The HT-100™ Carbon Fiber Drag System provides smooth, consistent pressure across the entire drag range, giving you confidence when fighting big fish from surf, shore, or boat.
A full metal body and sideplate keep the internals aligned under pressure, while the new Improved Line Management System and Superline Spool make it easy to fish braid without backing. With sealed bearings and saltwater-ready construction, the Battle® IV is designed to take abuse and keep performing season after season.
| MODEL NUMBER | REEL SIZE | GEAR RATIO | RETRIEVE | # BALL BEARINGS | MONO CAPACITY (M/MM) | BRAID CAPACITY (M/LB) |
|---|---|---|---|---|---|---|
| BTLIV1000 | 1000 | 5.2:1 | Right/Left | 6 | 140/4 110/6 95/8 | 125/8 110/10 100/15 |
| BTLIV2000 | 2000 | 6.2:1 | Right/Left | 6 | 240/4 180/6 125/8 | 210/8 180/10 165/15 |
| BTLIV2500 | 2500 | 6.2:1 | Right/Left | 6 | 255/6 175/8 140/10 | 240/10 220/15 160/20 |
| BTLIV3000 | 3000 | 6.2:1 | Right/Left | 6 | 200/8 165/10 120/12 | 250/15 180/20 130/30 |
| BTLIV4000 | 4000 | 6.2:1 | Right/Left | 6 | 270/8 220/10 165/12 | 360/15 260/20 185/30 |
| BTLIV5000 | 5000 | 5.6:1 | Right/Left | 6 | 225/12 200/15 135/20 | 420/20 300/30 240/40 |
| BTLIV6000 | 6000 | 5.6:1 | Right/Left | 6 | 335/15 230/20 210/25 | 490/30 390/40 335/50 |
| BTLIV8000 | 8000 | 4.7:1 | Right/Left | 6 | 340/20 310/25 230/30 | 475/50 390/65 345/80 |
| BTLIV10000 | 10000 | 4.2:1 | Right/Left | 6 | 395/30 330/40 230/50 | 770/50 710/65 490/80 |
| BTLIV4000HS | 4000 | 7.0:1 | Right/Left | 6 | 305/8 250/10 185/12 | 410/15 295/20 210/30 |
| BTLIV6000HS | 6000 | 6.2:1 | Right/Left | 6 | 365/15 250/20 230/25 | 535/30 425/40 365/50 |
| BTLIV8000HS | 8000 | 5.3:1 | Right/Left | 6 | 370/20 335/25 250/30 | 515/50 420/65 375/80 |
